| Serial Number | Part Type | Technical Requirements and Characteristics |
| 1 |
Motor components |
1.Operating voltage: DC 12V, gear reduction ratio: 1:18.47. 2.The motor runs at 6700 ± 8% rpm no-load, with an I0 = 0.55A (noise: max 47dBmax, 10V, 30cm). The static torque of the motor is 110 ± 25 g.cm. 3.Stall torque of single-phase motor: 3.0 ± 0.2 Kg.cm, stall current: 30A ± 5A 4.No-load speed of the speed reducer: 360±30 rpm, no-load current: 1.0 A max (forward/reverse) 5.Ambient static resistance: 2.5 (+1.5/-1.5) Kg.cm (reverse and forward direction counteracting the spline shaft end) 6.Rated torque: 0.5--3 N.m, maximum torque capacity 5 N.m (time 1--2 seconds). Gear destruction torque: 15 N.m 7.Lifespan: Over 30,000 cycles (one cycle consists of 6 seconds forward rotation, 10 seconds pause, 6 seconds reverse rotation, and 10 seconds pause). High temperature, low temperature, and room temperature each account for 10,000 cycles. |
| 2 |
screw shaft |
Materials：3CR13 Tensile strength：600MPa |
| 3 |
guide tube |
Materials ：Aluminum 6063 torsional strength ：15N.M |
| 4 |
Nut assembly |
Materials ：POM torsional strength：15N.M Tensile strength：7000N |
| 5 |
Spring |
Materials：SWOSC-VHV Tensile strength：2000MPa |
| 6 |
casing |
materials ：PA66+GF30 Temperature resistance: ：-35℃~+85℃ |
| 7 |
ball socket |
materials：PA66+GF50 Tensile strength：≥3000N |

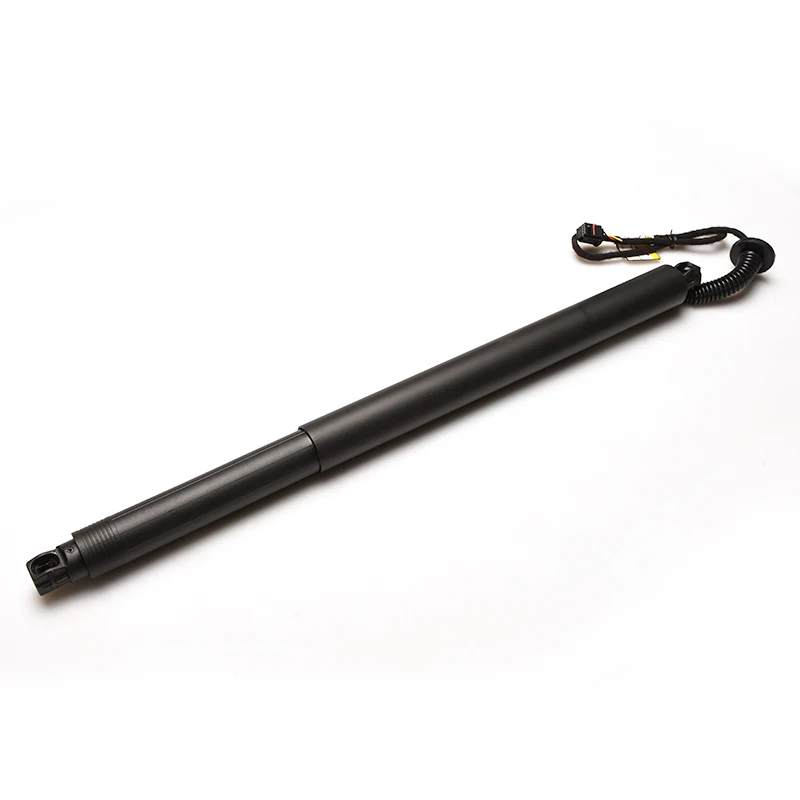

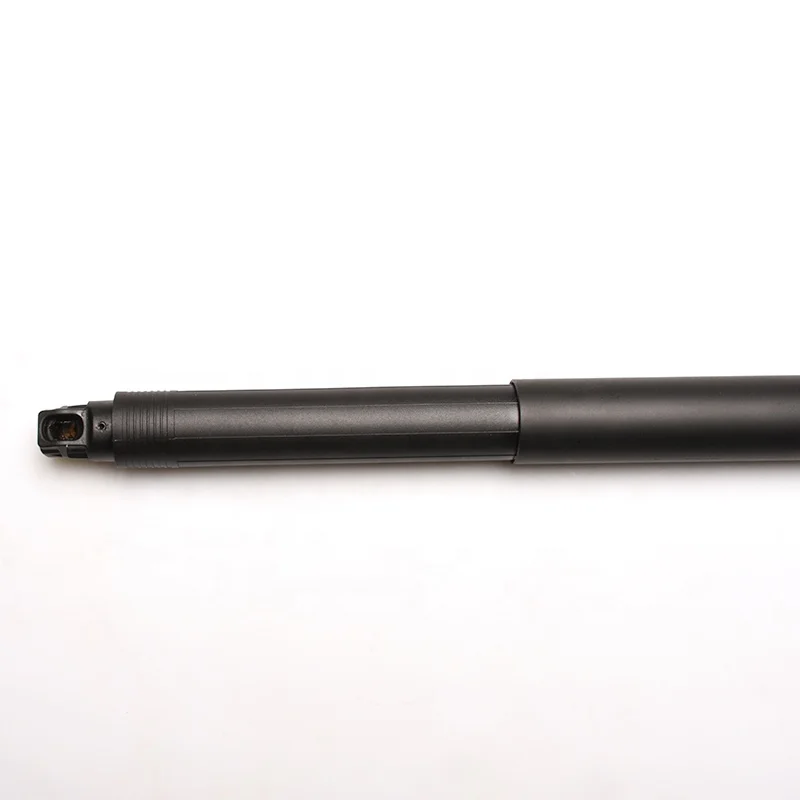

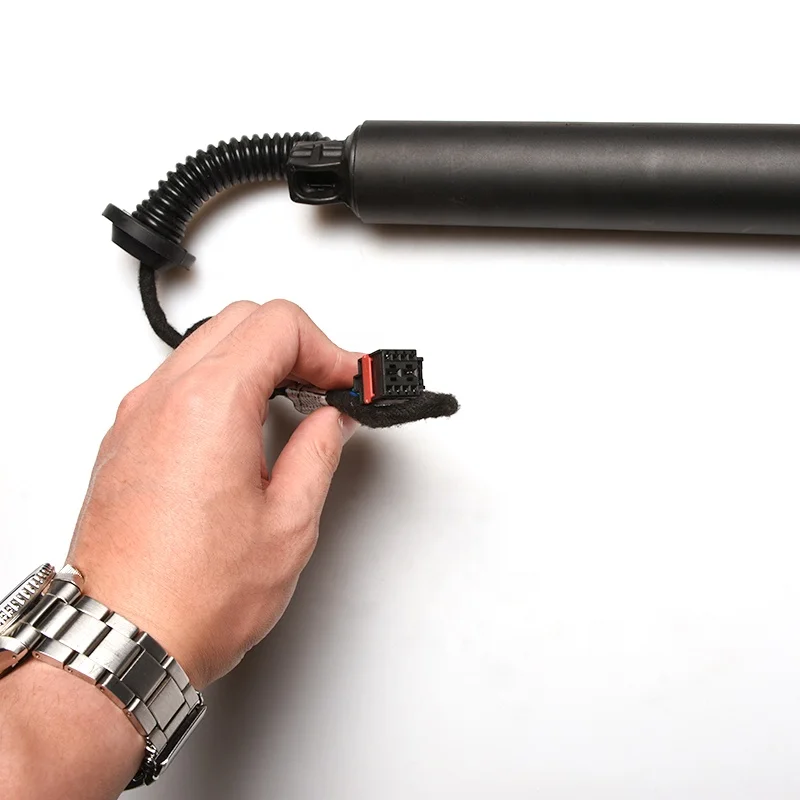

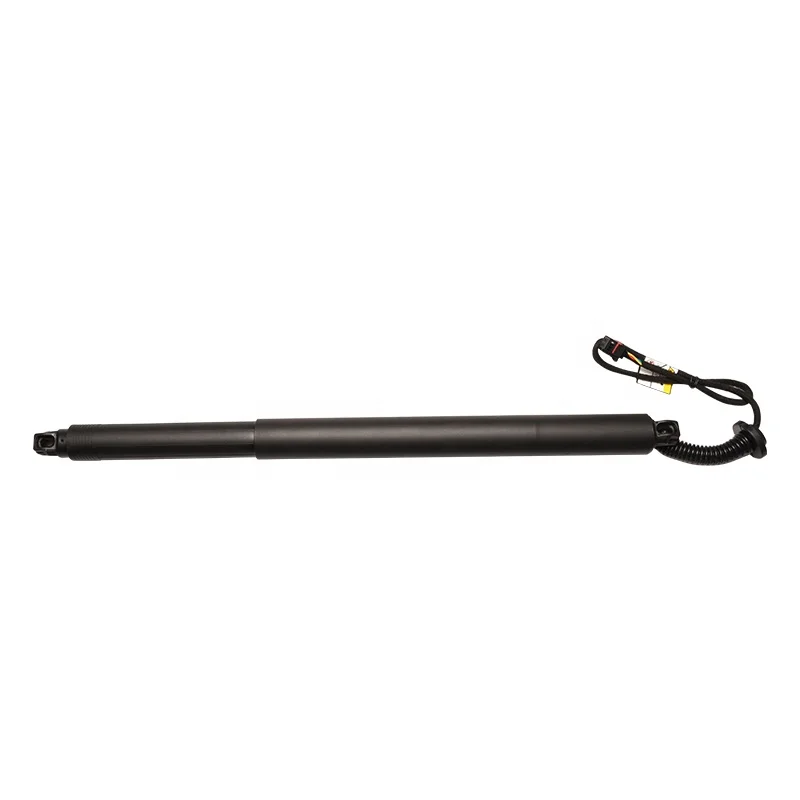

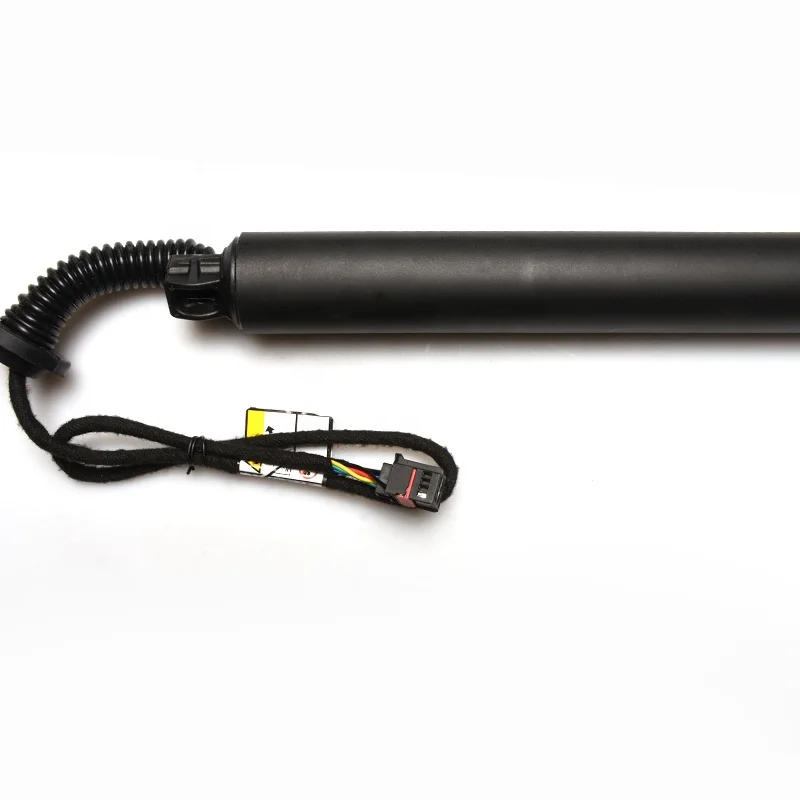

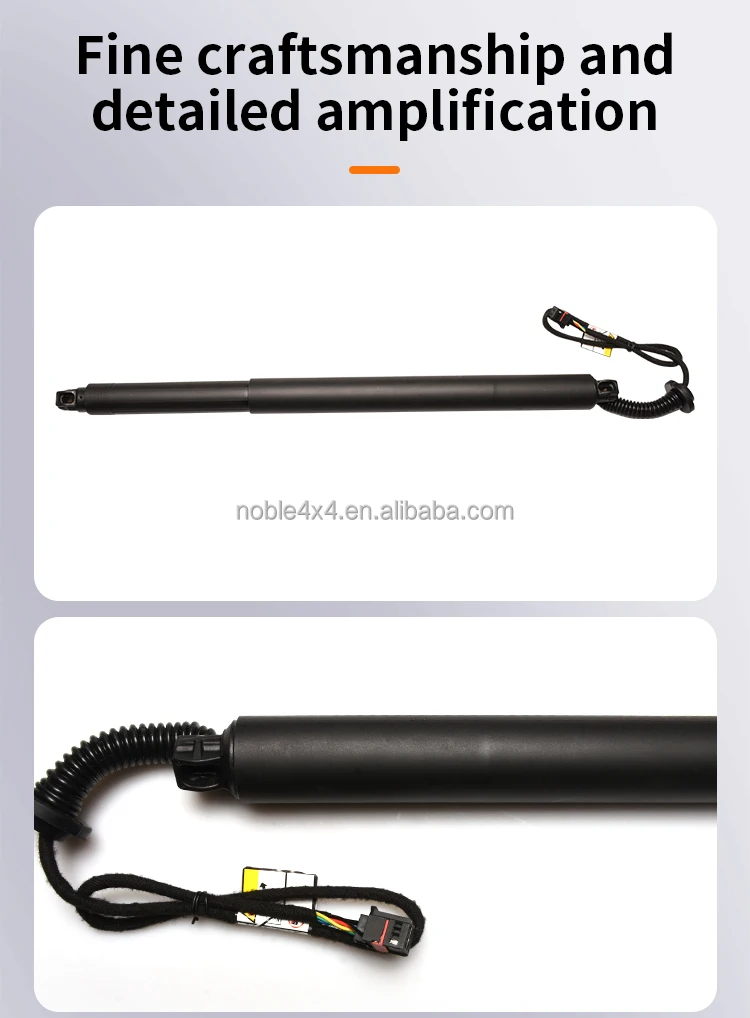

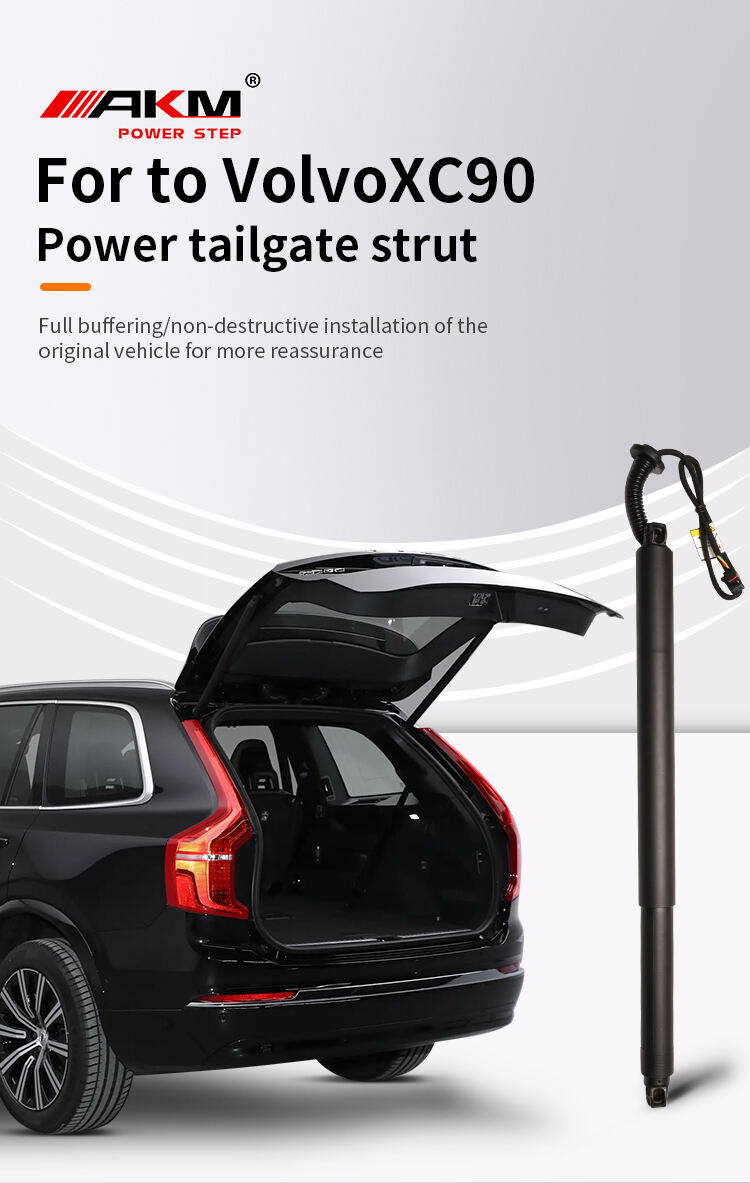

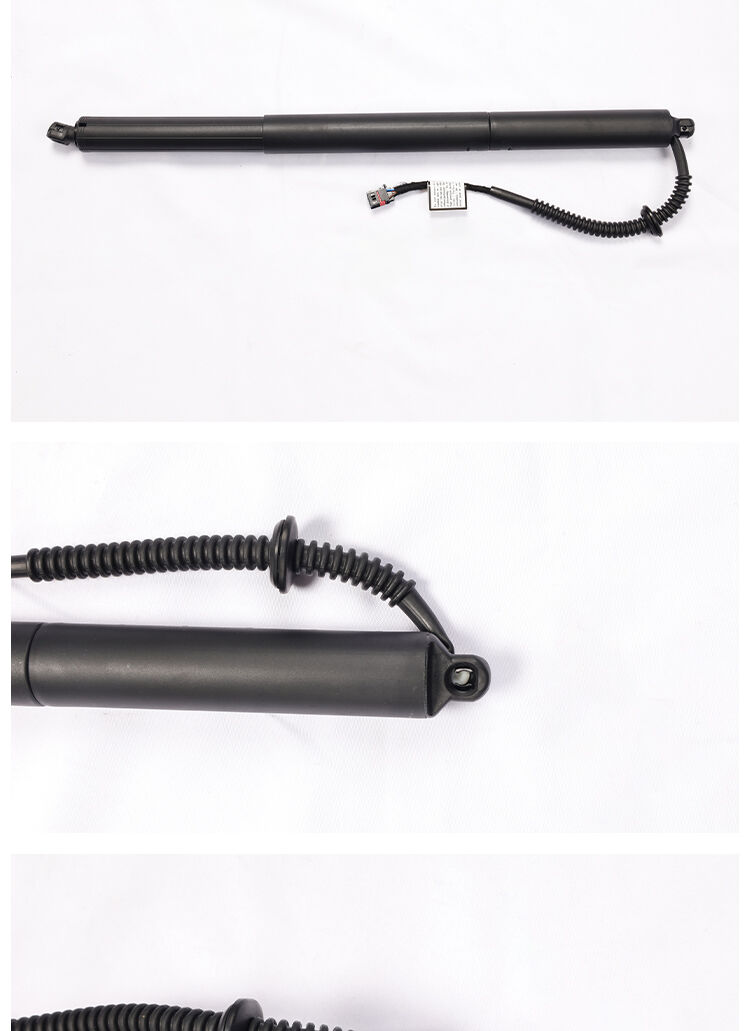

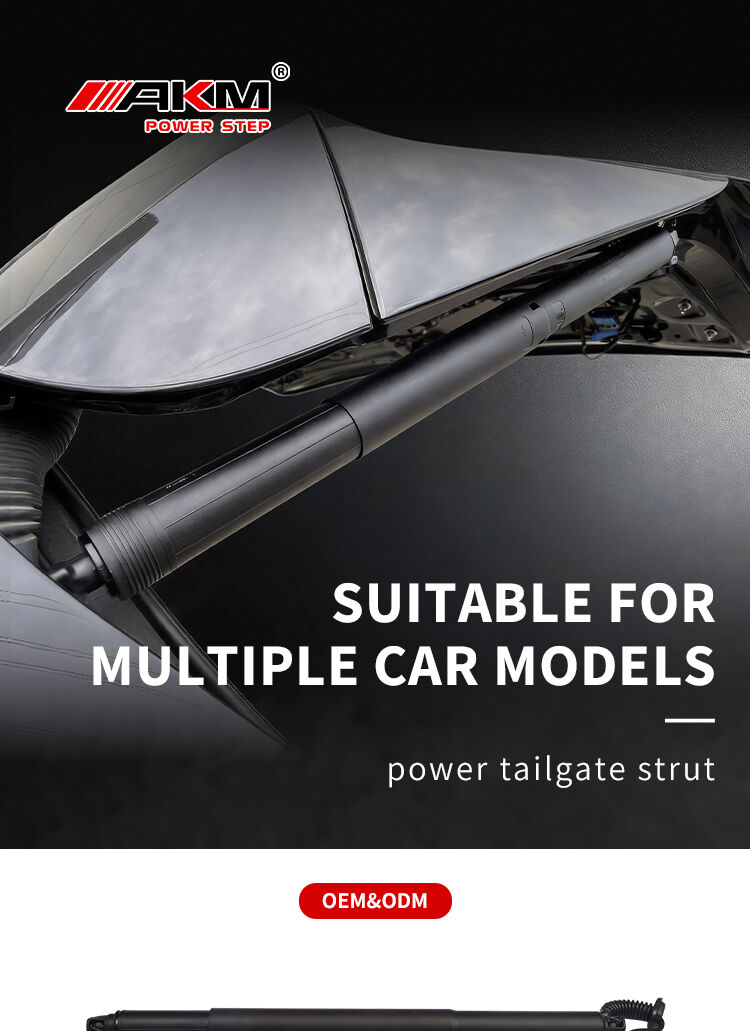

power liftgate support
Repair parts upgrade modification electric tailgate support column car parts OE number
Car trunk lift motor; electric tailgate lift; hoist; tailgate support rod power tailgate struts
The cylindrical rod manufactured by Noble Auto Parts Co., Ltd. is equipped with a motor
and is suitable for the lift rod on both sides of the car trunk and electric tailgate support rod.
OE NO. |
OE 31457610 31663099 31371096 XC90 |
Place of Origin |
China Zhejiang |
Brand Name |
AKM |
Car Make |
Volvo xc90 2016-2019 |
Position |
Tailgate Struts |
Type |
With No Light |
Packing |
Carton Package |
Delivery time |
7-15 Days |
Installation |
Instructions |
Material |
S/S+ABS+RB |
